Home > 제품정보 > 원형커넥터



Untitled Document


Shell size Contact Current rating Withstand voltage Insulation resistance Contact resistance
12 2 . 4 3 A AC500V a minute 1000MΩ Min 5mΩ MAX
16 2.3.4.5 5 A AC500V a minute 1000MΩ Min 5mΩ MAX
  6.7.8 3 A AC500V a minute 1000MΩ Min 5mΩ MAX
20 2.3.4.5 7 A AC500V a minute 1000MΩ Min 5mΩ MAX
  6 4 A AC500V a minute 1000MΩ Min 5mΩ MAX
  8.10 3 A AC500V a minute 1000MΩ Min 5mΩ MAX
25 2.3.4.5 10 A AC500V a minute 1000MΩ Min 5mΩ MAX
  6.8.10.12 5 A AC500V a minute 1000MΩ Min 5mΩ MAX
30 2.3.4 15 A AC500V a minute 1000MΩ Min 5mΩ MAX
  6.8 15 A AC500V a minute 1000MΩ Min 5mΩ MAX
  10 7 A AC500V a minute 1000MΩ Min 5mΩ MAX
  14 5 A AC500V a minute 1000MΩ Min 5mΩ MAX
32 2.3.4 30 A AC500V a minute 1000MΩ Min 5mΩ MAX
40 2.3.4 40 A AC500V a minute 1000MΩ Min 5mΩ MAX
  6 20 A AC500V a minute 1000MΩ Min 5mΩ MAX
  12 3ea-10 A
9ea-5 A		 AC500V a minute 1000MΩ Min 5mΩ MAX

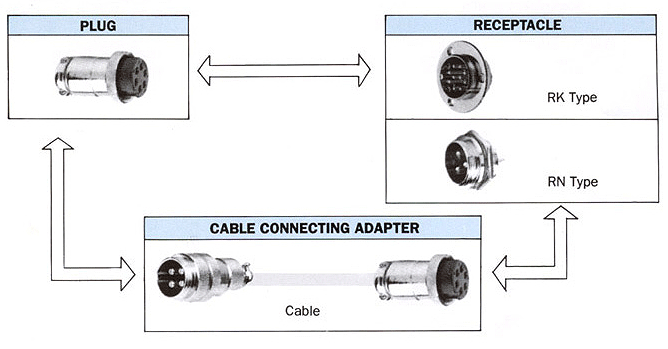

CAP of Receptacle RECEPTACLE & PLUG of show case
